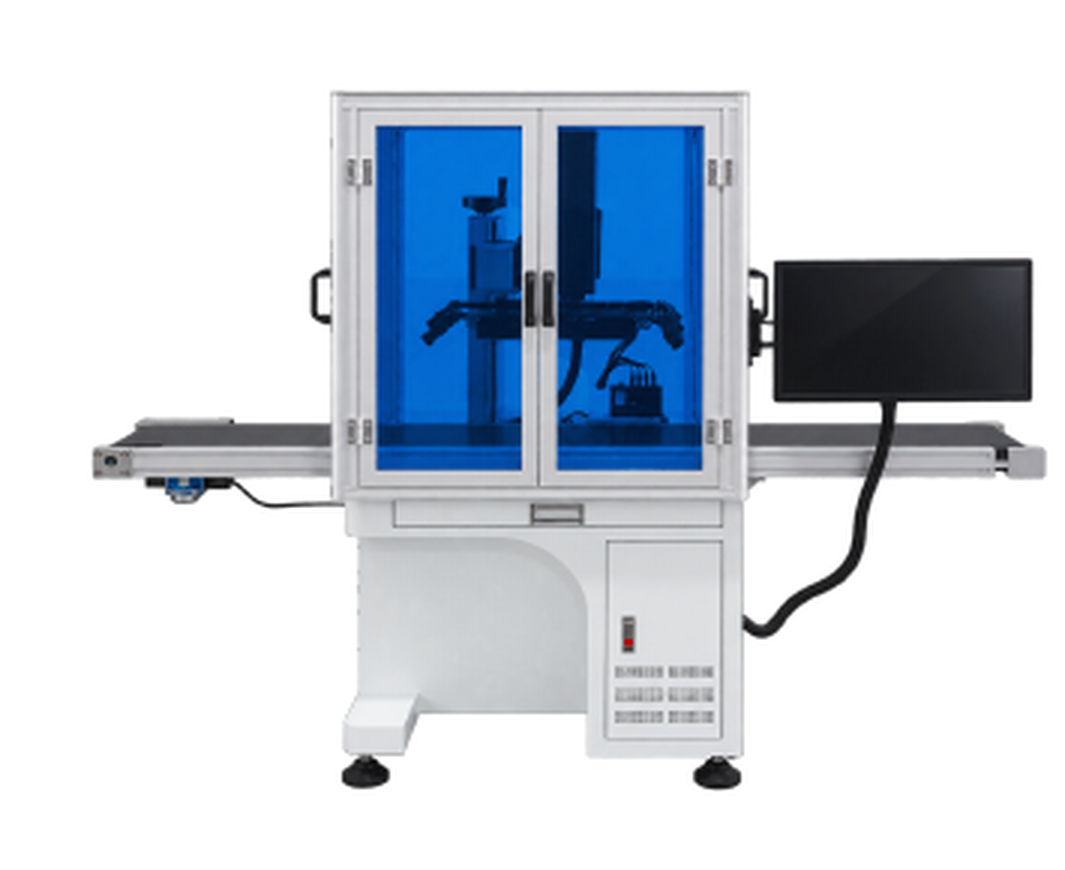

5W Vision UV Laser Marking System

A conveyor-integrated UV laser marking system combining a 355 nm laser, camera vision, programmable motion control and dedicated software.

Request a Quote All Laser Markers

PRODUCT FEATURES

Vision-guided marking for an automated line.

5W, 355 nm UV laser for fine, low-heat marking

12 MP large-working-distance camera for vision positioning

1,500 × 200 mm stepper-driven conveyor integration

Dedicated programmable motion controller

In-house vision software with multiple easy-to-use templates

Compressor-based water chiller for stable operation

SYSTEM CONFIGURATION

Built for repeatable inline marking.

Integrated configuration

INNO 355 nm UV laser source with high-speed digital galvanometer
Focusing optics and 12 MP vision camera
Gigabyte industrial PC with quad-core Intel Core i5 and 19-inch LCD
JCZ laser marking software with Adobe Illustrator (.AI) file support

Typical applications

For automated permanent identification, fine graphics, text, serial numbers, QR codes and traceability marks where accurate camera positioning and a conveyor workflow are required.

TECHNICAL SPECIFICATIONS

MIE-VI-05U parameters

Laser wavelength: 355 nm
Laser power: 5 W
Repetition frequency: 20–150 kHz
Pulse width: 1–30 microseconds
Beam quality (M²): < 1.1
Marking speed: ≤ 10,000 mm/s
Repeatability: ± 0.01 mm
Minimum character size: 0.07 mm
Marking area: 150 × 130 mm
Conveyor: Stepper driven, 1,500 mm long × 200 mm wide
Cooling method: Water cooling
Power supply: Single-phase 220–230 V / 60 Hz / 10 A

One complete unit/set is included for each configuration item. Specifications may be adjusted according to the application.
