MIE-806CN / COMPUTERIZED WIRE STRIPPING

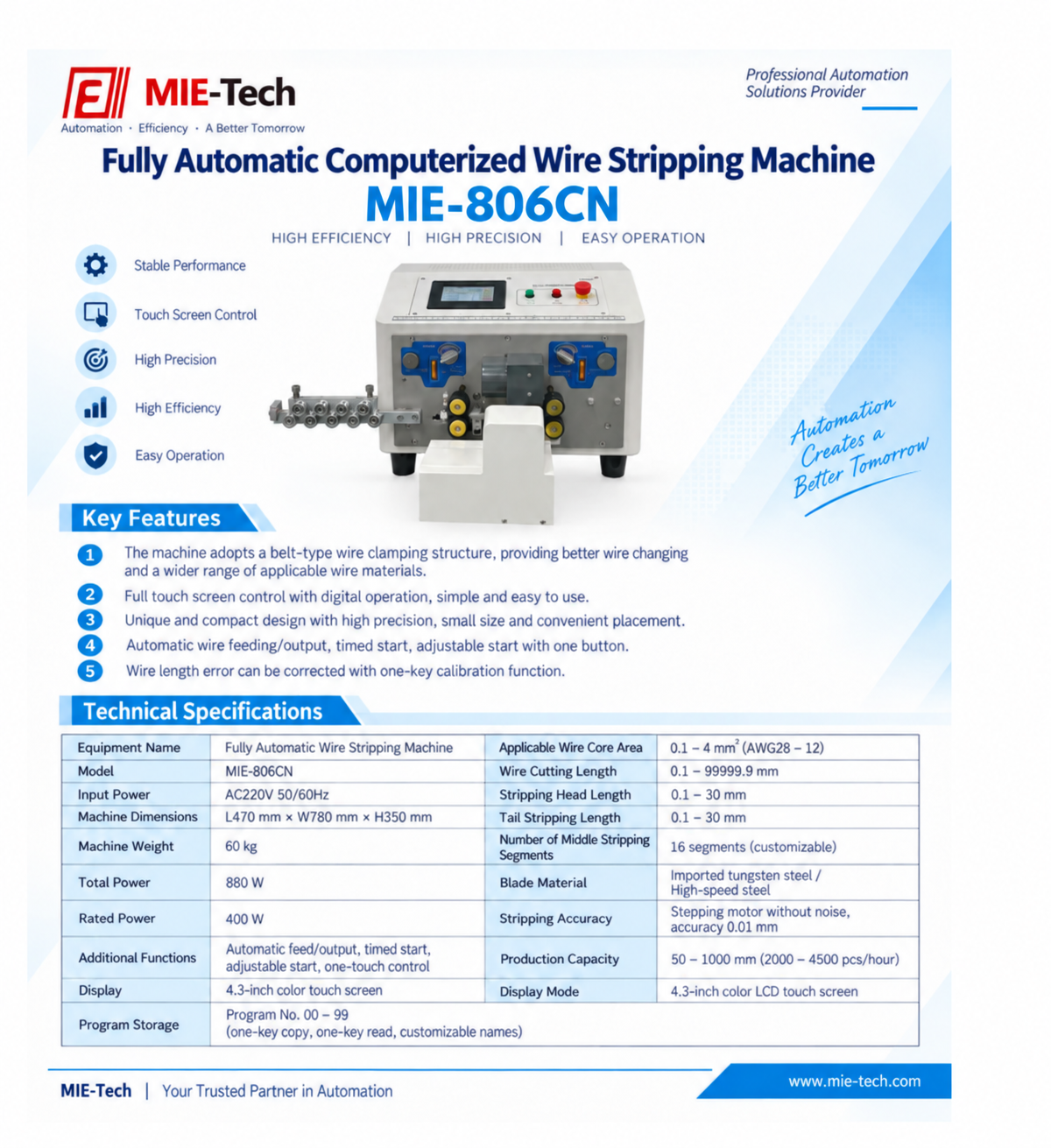

Fully Automatic Computerized Wire Stripping Machine
MIE-806CN is a touch-screen wire processing machine for accurate cutting and stripping of a wide range of wire materials.
Request a QuoteKEY FEATURES
Stable wire processing with simple operation.
01
Belt-type wire clamping for wider material compatibility.
02
Full touch-screen digital control.
03
Compact high-precision design.
04
Automatic feed/output and timed start.
05
One-key wire-length calibration.
TECHNICAL SPECIFICATIONS
MIE-806CN parameters
- Model
- MIE-806CN
- Applicable wire core area
- 0.1–4 mm² (AWG28–12)
- Input power
- AC220V, 50/60Hz
- Wire cutting length
- 0.1–99,999.9 mm
- Machine dimensions
- L470 × W780 × H350 mm
- Stripping head length
- 0.1–30 mm
- Machine weight
- 60 kg
- Tail stripping length
- 0.1–30 mm
- Total / rated power
- 880 W / 400 W
- Production capacity
- 50–1000 mm: 2000–4500 pcs/hour
- Display
- 4.3-inch color touch screen
- Program storage
- Programs No. 00–99
Is MIE-806CN suitable for your wire?
Send the wire material, cross-section and required process for confirmation.
