MIE-808 / TWISTED WIRE

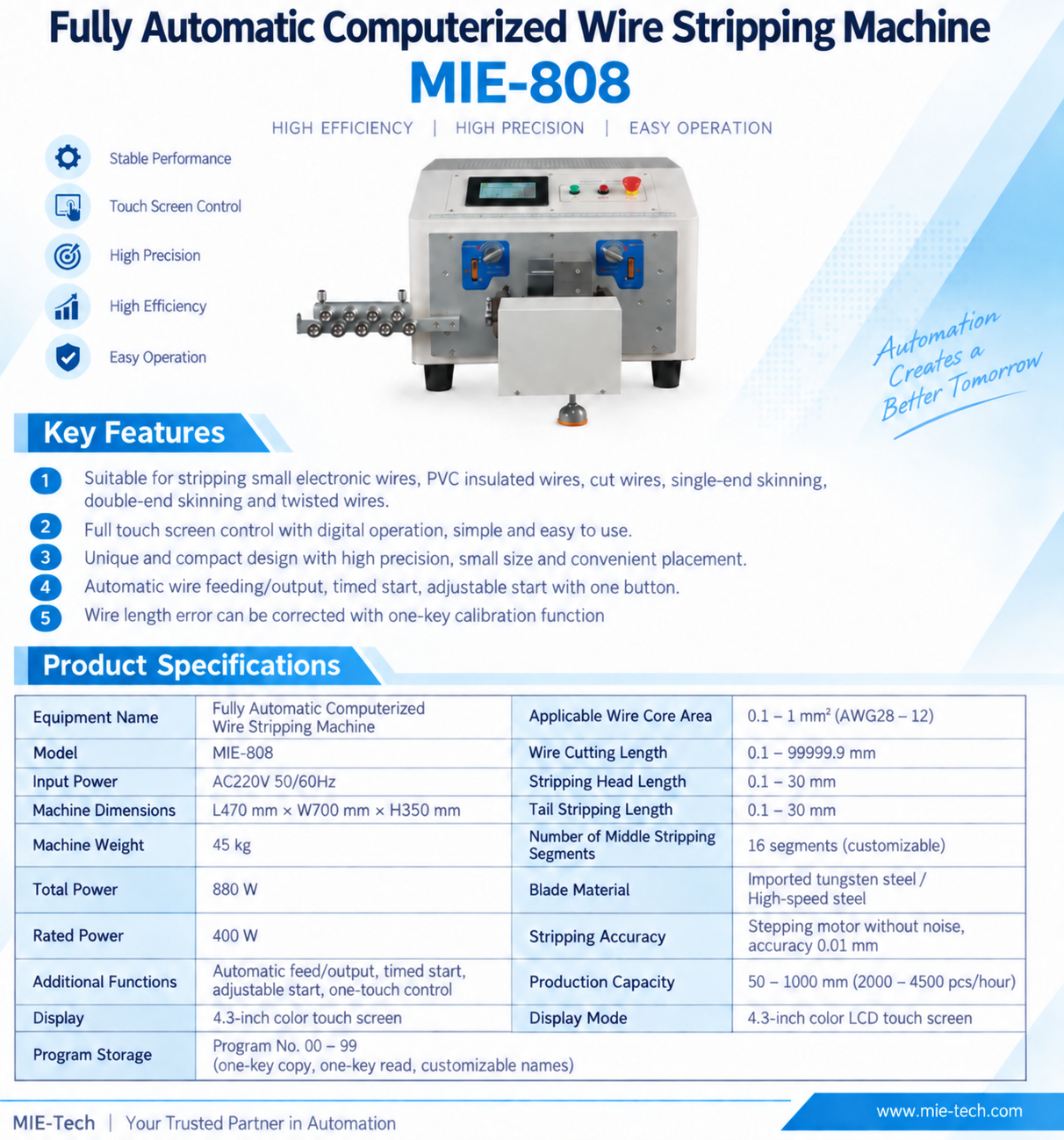

Fully Automatic Computerized Wire Stripping Machine
MIE-808 is a compact computerized wire stripping machine for electronic wires, PVC insulated wires and twisted-wire applications.
Request a QuoteTECHNICAL SPECIFICATIONS
MIE-808 parameters
- Model
- MIE-808
- Applicable wire core area
- 0.1–1 mm² (AWG28–12)
- Input power
- AC220V, 50/60Hz
- Wire cutting length
- 0.1–99,999.9 mm
- Machine dimensions
- L470 × W700 × H350 mm
- Stripping head length
- 0.1–30 mm
- Machine weight
- 45 kg
- Tail stripping length
- 0.1–30 mm
- Total / rated power
- 880 W / 400 W
- Production capacity
- 50–1000 mm: 2000–4500 pcs/hour
- Display
- 4.3-inch color touch screen
- Program storage
- Programs No. 00–99
KEY FEATURES
Compact operation for electronic and twisted wires.
01
Suitable for small electronic, PVC insulated and twisted wires.
02
Full touch-screen digital control.
03
Compact high-precision design.
04
Automatic feed/output and timed start.
05
One-key wire-length calibration.
Is MIE-808 suitable for your wire?
Send the wire material, cross-section and required process for confirmation.
